Somewhere inside almost every guitar neck runs a thin steel rod you never see. It is called the truss rod, and its job is to counteract the pull of the strings and let you fine-tune the neck's curve. Turn its nut, and the neck bends a little one way or the other. That small amount of bend, called relief, is what keeps your strings from buzzing against the frets.
Here is the part most players never learn: not all truss rods work the same way. There are two main types, single-action and dual-action, and the difference decides what problems your neck can and cannot fix. If you have ever tightened a truss rod as far as it would go and still had a neck that would not cooperate, this is probably why.
Let's break down how each one works, which guitars use them, and what that means for you.
What a Truss Rod Is Actually Doing
A set of strings pulls on a guitar neck with a surprising amount of force, often more than 100 pounds of tension for a standard electric set. Left alone, that pull bows the neck forward, toward the strings, which lifts the strings away from the fretboard and makes the guitar harder to play.
The truss rod pushes back. It sits in a channel carved into the neck, and tightening it counteracts the string pull to flatten the neck out. Loosening it lets the strings win a little and adds relief back in. The whole point is balance: enough forward curve to give the strings room to ring, not so much that the action climbs.
Both rod types do this. The difference is in how many directions they can push.
How a Single-Action Truss Rod Works
A single-action truss rod is the original design, and it does exactly one thing: it resists forward bow. One end anchors deep in the neck, and the other end has the adjustable nut. When you tighten that nut, the rod tries to straighten, which pulls the neck back against the strings and removes relief.
That is the whole range of motion. A single-action rod can counteract string tension, but it cannot push the neck the other way. It relies on the strings themselves to create the forward pull, and it fights that pull. Take the strings off and the rod has nothing to work against.
For the vast majority of guitars, that is plenty. Strings always pull forward, so a rod that resists forward pull covers the normal situation. This is why single-action rods have been used for decades on countless instruments, from vintage designs to modern acoustics.
The limit shows up in one specific spot. If a neck develops backbow, meaning it curves toward the strings instead of away from them, a single-action rod cannot fix it directly. The rod only pulls in the backbow direction, so it has no way to add forward relief on its own. Your only move is to loosen the nut all the way and hope the string tension slowly pulls the neck forward again, which sometimes works and sometimes does not.
How a Dual-Action Truss Rod Works
A dual-action truss rod, sometimes called a two-way or bi-flex rod, solves that exact problem. Instead of one rod that only resists forward bow, it uses two rods welded together, or a rod designed to push in either direction depending on which way you turn the nut.
Turn the nut one way, and it flattens a forward-bowed neck, just like a single-action rod. Turn it the other way, and it actively forces the neck into forward relief, pushing against a neck that has gone flat or backbowed. It does not need string tension to work in either direction, because the rod itself supplies the force.
That two-way control is the headline feature. A dual-action rod can pull a backbowed neck forward without waiting on the strings, which makes setups faster and gives a tech real correction range on both sides of straight. It is also handy on necks that see big swings, because you are never stuck with a rod that has run out of room in one direction.
The tradeoff is small. Dual-action rods are a bit heavier and cost a little more to build, which is why they are common on modern electrics but less universal on budget or vintage-style instruments.
Which Guitars Use Which
You cannot always tell from the outside, but there are patterns. Many vintage-style and traditional builds, along with a lot of acoustics, use single-action rods because the design is simple, light, and proven. Plenty of classic electric designs came with single-action rods and played beautifully for decades.
Modern electric guitars, especially those built for low tunings, heavy strings, or hard players, lean toward dual-action rods for the extra correction range. If your guitar was built in the last couple of decades and aimed at working players, there is a good chance it has a dual-action rod.
The surest way to know is to check the manufacturer's spec sheet or feel the adjustment behavior. On a single-action rod, loosening past a certain point just goes slack and does nothing. On a dual-action rod, loosening past straight starts to add resistance again as it engages the opposite direction.
Correction Range and Backbow, Side by Side
The practical difference comes down to two words: range and backbow.
A single-action rod gives you one direction of active correction. It flattens a forward-bowed neck, which is the problem you actually face most of the time. It handles normal setups without complaint, and for most guitars in most climates, you will never miss the second direction.
A dual-action rod gives you both directions. It flattens forward bow, and it forces relief into a flat or backbowed neck, all without depending on string tension. That extra range is the reason techs like them on necks that move a lot or that need aggressive adjustment.
Neither rod type keeps a neck from moving in the first place, though. That part depends on the neck material. Wood necks shift with humidity because wood takes on and releases moisture as the seasons change, which is a big reason a neck drifts into backbow or extra relief and sends you back to the truss rod twice a year.

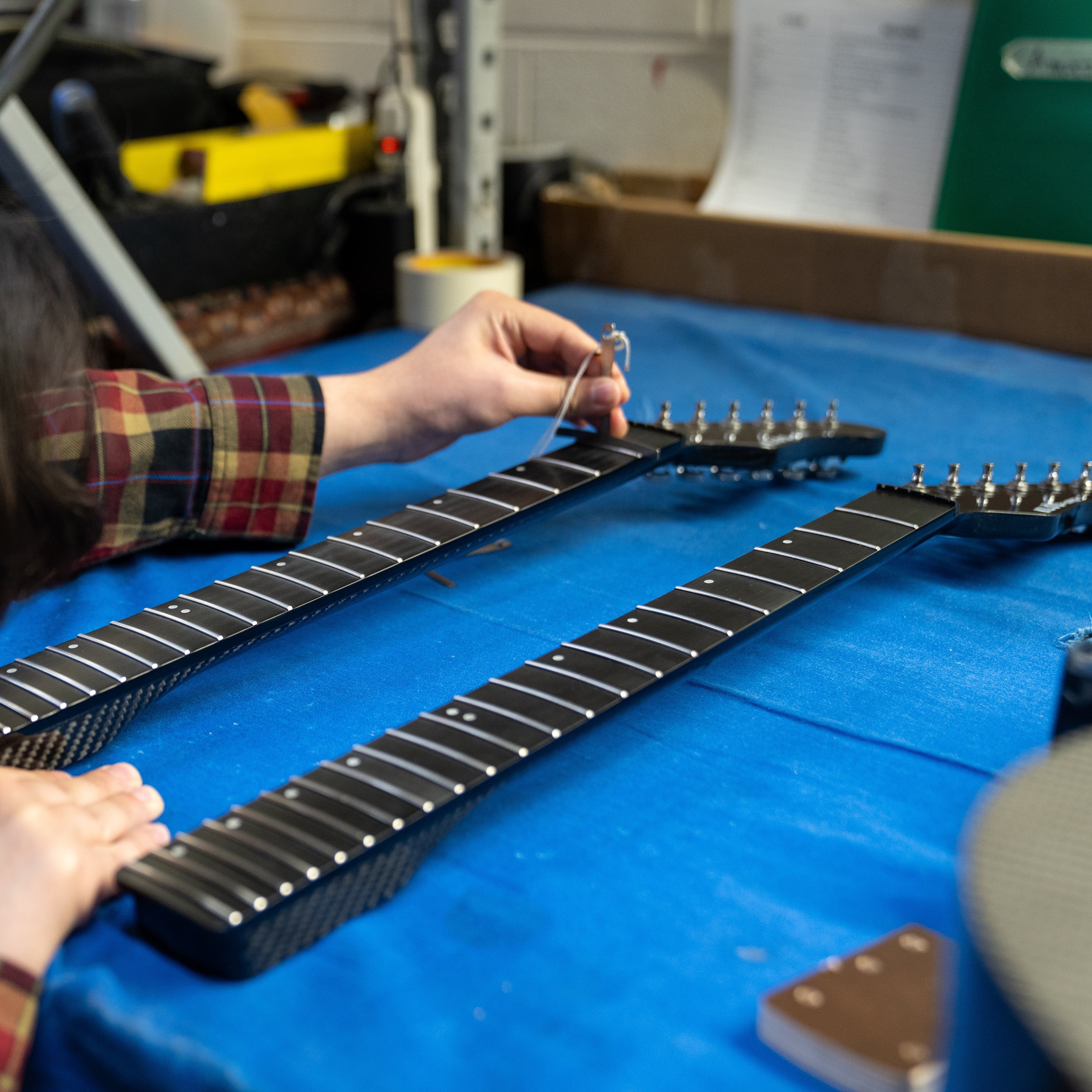

This is where the material underneath the rod matters as much as the rod itself. The KLŌS F-Series Electric Neck is built from carbon fiber, which does not absorb moisture and stays dimensionally stable through seasonal swings. It still has a truss rod so you can dial in your preferred relief, but a carbon fiber neck holds the setting you choose instead of drifting off it, so you reach for the rod far less often. The same idea carries over to bass, where the F-Series Bass Neck fits Precision and Jazz bodies and stays put under heavy string tension.
The Bottom Line
Single-action versus dual-action comes down to how many ways your truss rod can push. Single-action resists forward bow and covers the everyday situation on a huge range of guitars. Dual-action adds a second direction, so it can force a flat or backbowed neck forward and give a tech more room to work.
Know which one your guitar has, and you will understand exactly what an adjustment can fix, what it cannot, and when the real answer is a neck that simply holds its shape on its own.
